Mounting and un-mounting of 3D Print frames

Lens

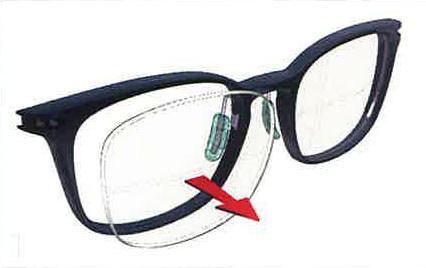

  1. Always remove demo lens inside out without heating

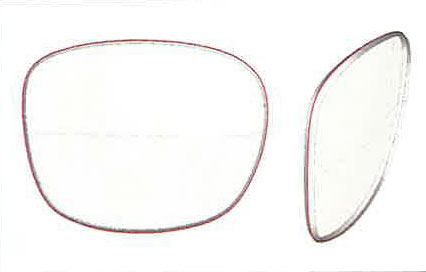

  2. To cut the lens, always use the demo lens : the top of the bevel (red line on second picture). Scan the demo lens and do not increase or reduce its size

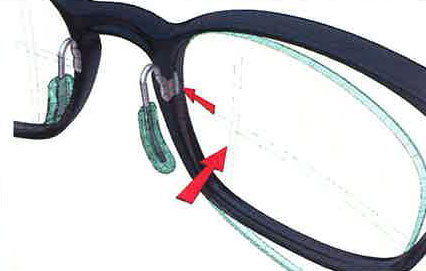

  3. To insert the prescription lens: without heating the front, always from the inside – first start with the groove nasal side

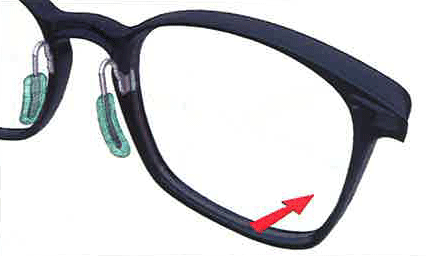

  4. Clip the prescription lens inside the groove without heating the front

LINOTEC pad-arm

  1. Always remove demo lens inside out without heating

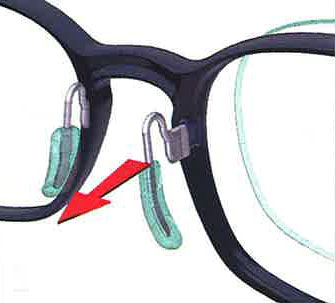

  2. Always remove the LINOTEC pad-arm by the back

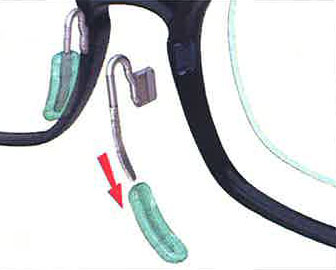

  3. To change the nose pad, remove it downward
  4. To put the LINOTEC pad-arm, the lens must be removed. Introduce the pad-arm by the back and slide in the notch
Download the PDF version
